DIN931 Bolts

After several years' development,our products include screws, bolts, nuts and anchors. Over 95% of our products are exported to the overseas market, such as Europe. America and Southeast Asia.

Commodity name： DIN931 Bolts

Category:

Din931 Bolts

WhatsApp:

8615532009056

Email:

qusheying@qiansenfastener.com

Get Quote

Also Like

Description

Product parameters

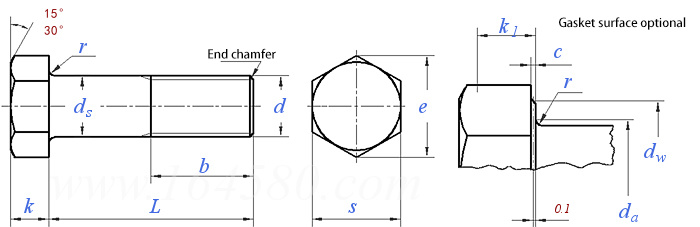

Thread specification d		(M68)	M72	(M76)	M80	M90	M100	M110	M125	M140	M160
P	Pitch	6	6	6	6	6	6	6	6	6	6
b	125<L≤200	148	156	164	172	192		-
b	L>200	161	169	177	185	205	225	245	275	305	345
c	Minimum value	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4	0.4
c	Maximum value	1	1	1	2	2	2	2	2	2	2
da	Maximum value	75	79	83	87	97	107	117	132	147	167
ds	Maximum value=Nominal	68	72	76	88	90	100	110	125	140	160
ds	Minimum value	67.26	71.26	75.26	79.26	89.13	99.13	109.13	124	139	159
dw	Minimum value	92.9	97.7	102.1	106.9	121.1	135.4	144.9	168.6	185.6	214.1
e	Minimum value	110.51	116.16	121.81	127.46	144.08	161.02	172.32	200.57	220.8	254.7
k	Nominal	43	45	48	50	57	63	69	79	88	100
	Minimum value	42.5	44.5	47.5	49.5	56.4	62.4	68.4	78.4	87.3	99.3
	Maximum value	43.5	45.5	48.5	50.5	57.6	63.6	69.6	79.6	88.7	100.7
k1	Minimum value	29.8	31.2	33.2	34.6	40.3	43.7	47.9	54.9	61.1	69.5
r	Minimum value	2	2	2	2	2.5	2.5	2.5	2.5	2.5	2.5
S	Maximum value=Nominal	100	105	110	115	130	145	155	180	200	230
S	Minimum value	97.8	102.8	107.8	112.8	127.5	142.5	152.5	177.5	195.4	225.4
Thread b					-						-
L	Minimum value		-.	.
L	Maximum value

① Material:
Steel, mechanical properties: according to their respective materials or protocols
Note: If the mechanical properties of each material can be guaranteed, the strength grade of DIN EN ISO 898-1 also applies to specifications above M39
